| Price: |
Call or Email for price |
| Vin: |
|
| Stock #: |
|
| Mileage: |
0 miles |
| Exterior: |
|
| Interior: |
|
| Engine: |
3-Cylinder
36 HP DIESEL |
| Transmission: |
HYDRO 4 AUTO OR FULL TIME 4X4 |
| Fuel Type: |
Diesel |
| Trim/Package: |
60"72"84" SIDE OR REAR DISC |
| |
Options
|
| |
| Comments |

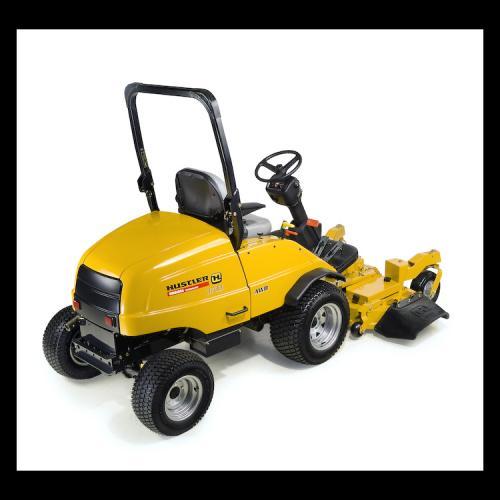

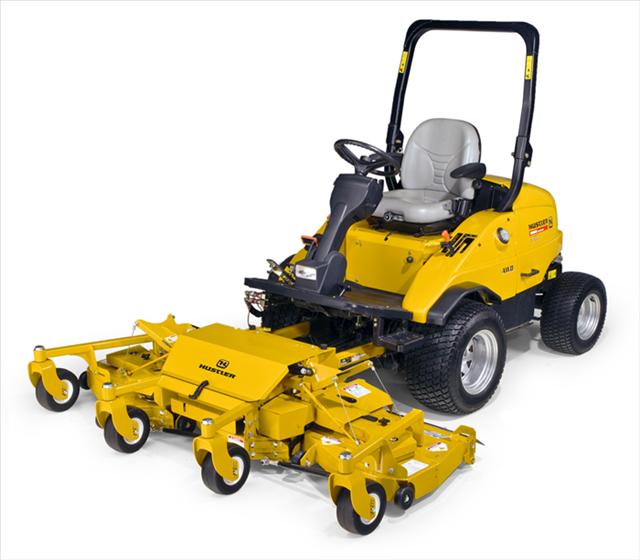

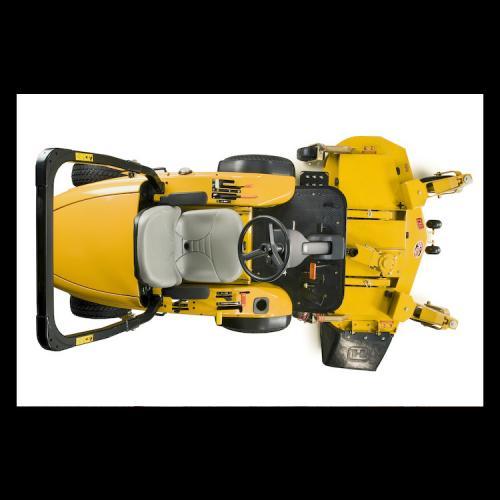

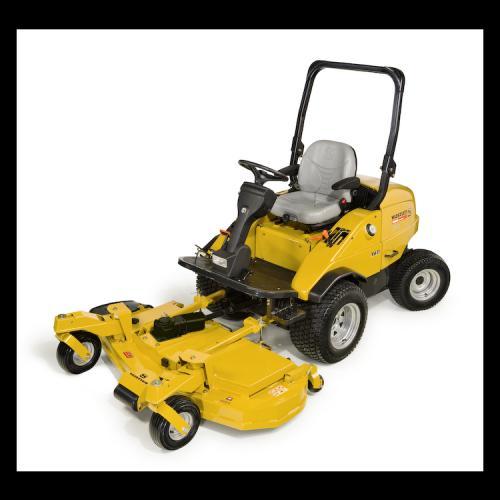

With four-season versatility and a powerful diesel engine, the Hustler 3700 is the ultimate workhorse. With an unmatched expertise in rotary mowers and exceptional customer care, Hustler will help you get any job done right. Whether you're maintaining golf courses or city property, get to know the same Hustler experience our customers have relied on for over half a century.
•36 hp Shibaura liquid-cooled diesel engine for increased engine life

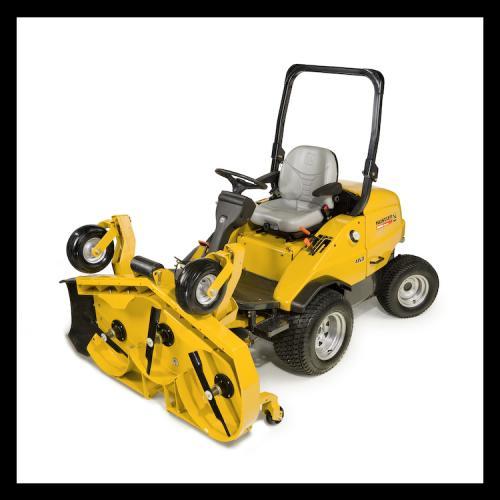

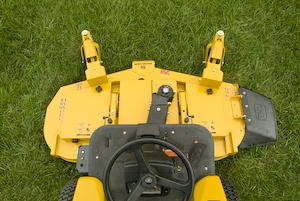

•Front-mounted, welded XR-7 deck, with tool-free installation
•XR-7 side-discharge decks rotate up 90 degrees with PTO shaft remaining
connected for easier maintenance
•Cruise control and tilt and telescoping steering wheel
•Foldable, two-post ROPS
•Low noise and low vibration
•Excellent weight balance to achieve maximum stability
•One piece full open hood designed for simple access to engine
•Full-time automatic AWD with AWD lock
•Hydraulic weight transfer for maximum traction
•Full range of accessories and cabs
•One piece full open hood designed for simple access to engine
•Wet brakes in drive axle eliminate sticking, dirt and corrosion
•Foot pedal differential lock for extra traction
Electrical System: 12 volt
Fuel Capacity: 13 gal (49.2 L)
Ground Speed:
Forward Low 0-6 mph, High 0-15 mph
Reverse Low 0-4 mph, High 0-9 mph
Blade Tip Speed:
18,266 fpm (60)
18,964 fpm (72)
16,900 fpm (84)
Cutting Heights:
2 inches to 6 inches in .25in increments (5 cm to 15 cm, .6cm)
84" Flex Deck: 0.75 inch to 3.5 inches (1.9 cm to 8.9 cm)
•Tractor - 2 Year/1500 hour limited Parts & Service
•Engine - 3 Year/2000 hour limited Parts & Service
Mulch Kit
Nearly every Hustler deck has an optional Mulch Kit. No more
handling clippings. Recycle them back into the soil and
reclaim nutrients.

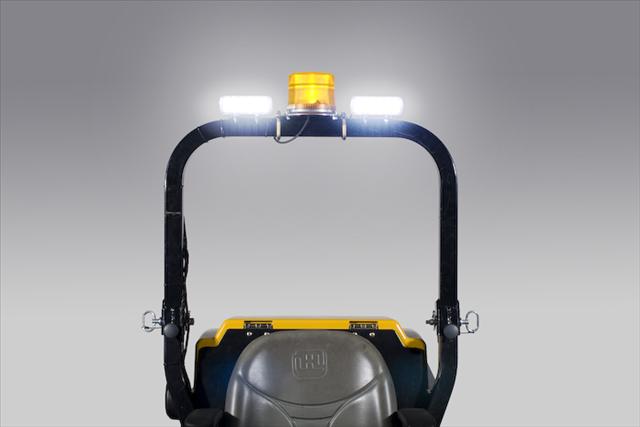

Beacon Kit
ROPS mounted Beacon Kit
ROPS mounted Light Kit
Hustler 3700 Frontmount blade
Specifications for 3700 Snowblade:
• Blade width: 60"
• Height (top of moldboard): 18"
• Cutting edge: 3/8" th. x 4" tall (reversible)
• Attack angle: 65 degrees
• Moldboard Gauge: 11 ga.
• Vertical Ribs: 4
• Plow trip springs: 4
• Angle adjustment increments
(manual blade adjustment): 15 degrees
• Max. Angle: 30 degrees
• Blade width at max Angle: 52"
• Skid shoes standard
• Rear counterbalance weight recommendation: 100 lbs.
Options:P/N 111803 hydraulic cylinder kit for in-cab angling
tractor must be equipped with aux. hydraulic kit 602050

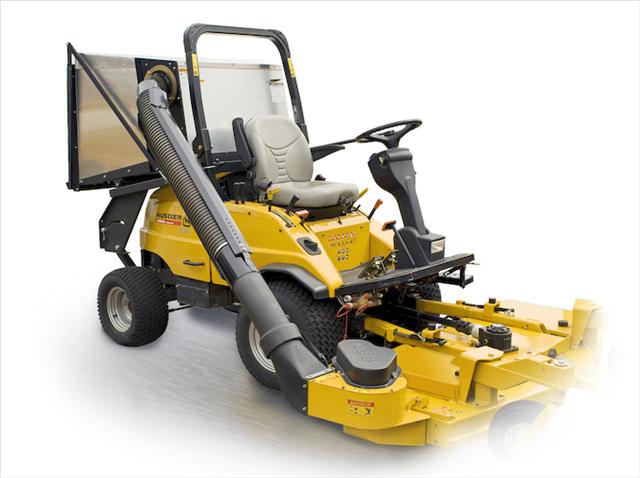

Hustler 3700 Catcher Specs:
• Catcher Capacity: 24 Cubic Foot (19.3 Bushels)
• Catcher Construction: Heavy Duty Steel frame with sturdy,
lightweight aluminum Catcher Box
• Catcher Dumping Method: Dump-from-seat via left hand
operated dumping arm.
• Powered blower system: 60" deck and 72" deck blower
and adapter kit models available.
• Powered blower mount: Blower is assembled directly to
RH side of mower deck.
• Drive system: Blower is powered via belt drive off right
side deck spindle.
• Blower adapter tube: Blower adapter hose is fully supported
by steel framework to eliminate blower hose sag and provide
optimum flow of air and debris directly to catcher box. Adapter
from hose to catcher box is an all steel design that
quick- couples to the catcher box with no plastic parts to wear out.
• Catcher aluminum box basic size dimensions:
40.5" length x 40" width x 33" height
(Catcher will NOT work with the use of any cab enclosure
for this tractor model).

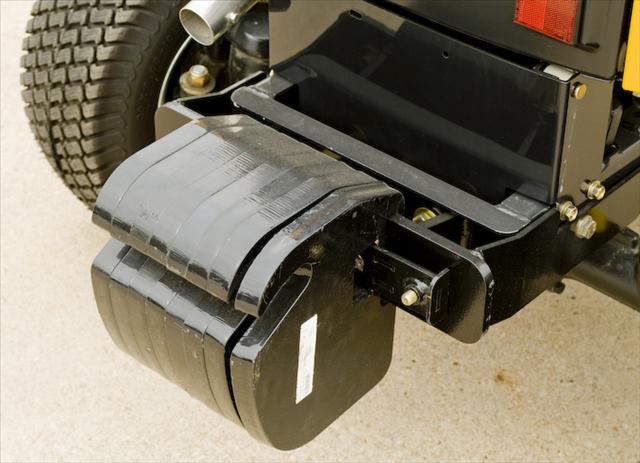

Counter Balance Weights
Each attachment has a recommended counter balance
weight requirement for the 3700 machine.
Weights are in 50lbs increments.

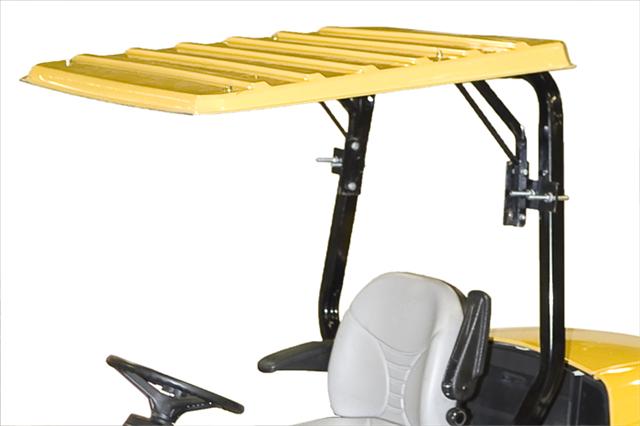

Sun Canopy

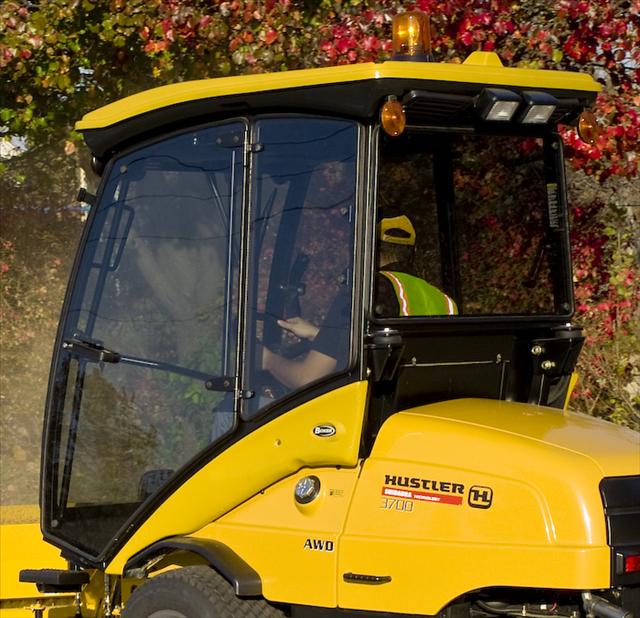

Hard Cab Optional A/C and heat
Snow Blower

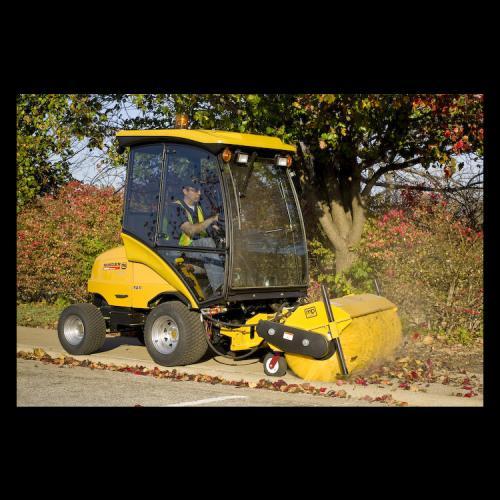

Rotary Broom
Soft Cab
|
| |
|
|
|
|
